Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/3 inch CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 60m (196.85 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°-360°; Tilt: 0°-90°; Rotation: 0°-360° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 104°-29° Vertical: 54° - 16° Diagonal: 125° - 33° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @(1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps - 8192 kbps H.265: 3 kbps - 8192 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.8W (12 VDC); 3.6W (PoE) Max. (WDR + IR intensity + Intelligence): 7.9W (12 VDC); 9.2W (PoE) |
| Environment | |
| Operating Temperature | -30°C to +60°C (-22°F to 140°F) /Less than 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F) |
| Protection | IP67 |
| Structure | |
| Casing | Metal |
| Product Dimensions (L × W × H) | 244.1 mm × 79.0 mm × 75.9 mm |
| Net Weight | 820g |
Bảo hành: 24 tháng
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 4.0 Megapixel (2688 (H) × 1520 (V)).
- Ống kính motorized 2.7mm-13.5mm.
- Tầm quan sát hồng ngoại: 60 mét.
- Chuẩn nén hình ảnh: H.265; H.264; H.264H; H.264B; MJPE.
SKU: DH-IPC-HFW3441T-ZS-S2
GIAM5

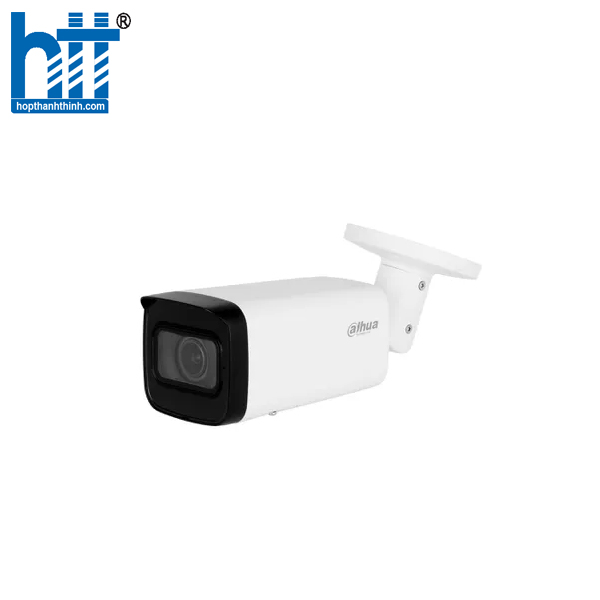

Camera IP hồng ngoại 4.0 Megapixel DAHUA DH-IPC-HFW3441T-ZS-S2
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 4.0 Megapixel (2688 (H) × 1520 (V)).
- Ống kính motorized 2.7mm-13.5mm.
- Tầm quan sát hồng ngoại: 60 mét.
- Chuẩn nén hình ảnh: H.265; H.264; H.264H; H.264B; MJPE.
- Chống ngược sáng WDR (120dB).
- Hỗ trợ các tính năng: Chế độ ngày đêm (ICR), chống ngược sáng (BLC), chống nhiễu (3D-DNR).
- Tích hợp Mic.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Điện áp: 12VDC/PoE (802.3af).
