Thương Hiệu

ASUS

Model

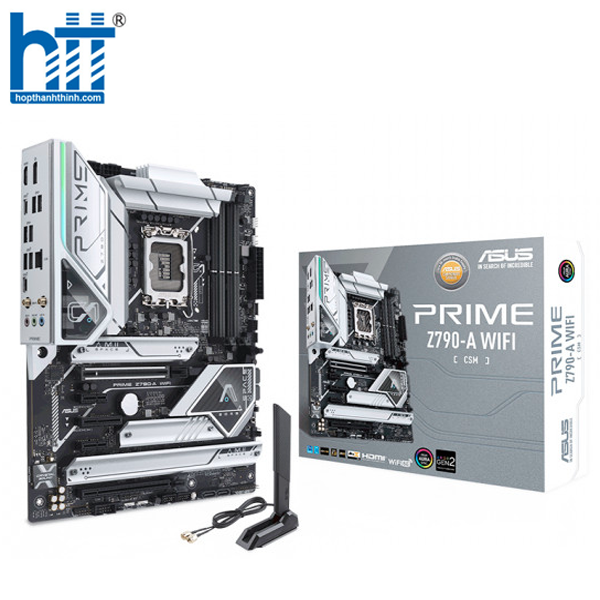

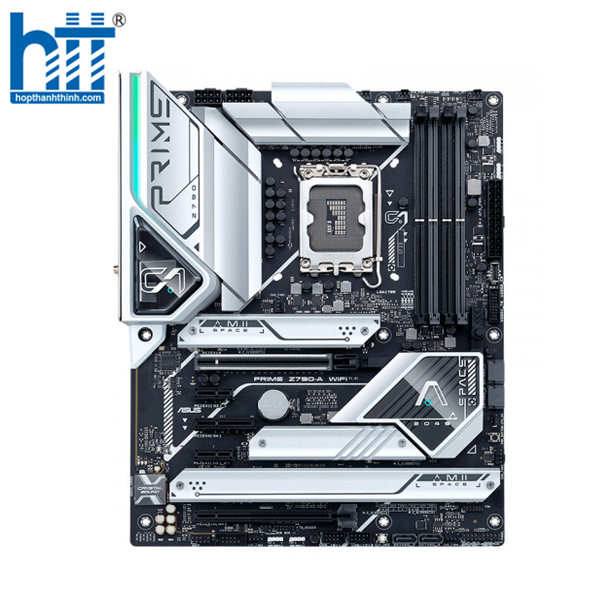

ASUS PRIME Z790-A WIFI-CSM

Kích Cỡ

ATX

CPU Socket

Intel® Socket LGA1700

Chipset

Intel® Z790 Chipset

Số Khe Ram

4

Bus Ram Hỗ Trợ

7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Un-buffered Memory

Dung Lượng Ram Tối Đa Hỗ Trợ

128GB DDR5

PCI Express 3.0 x16

1 x PCIe 5.0 x16 slot

1 x PCIe 4.0 x16 slot (supports x4 mode)

PCI Express x1

1 x PCIe 4.0 x4 slot

2 x PCIe 3.0 x1 slots

Số Cổng SATA

4 x SATA 6Gb/s ports

M.2

Total supports 4 x M.2 slots

Intel® 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (support PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

Chip Xử Lý Âm Thanh

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- Audio Shielding

- Power pre-regulator reduces power input noise to ensure consistent performance

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

- Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

LAN Chipset

ASUS LANGuard

Tốc Độ LAN

1 x Intel® 2.5Gb Ethernet

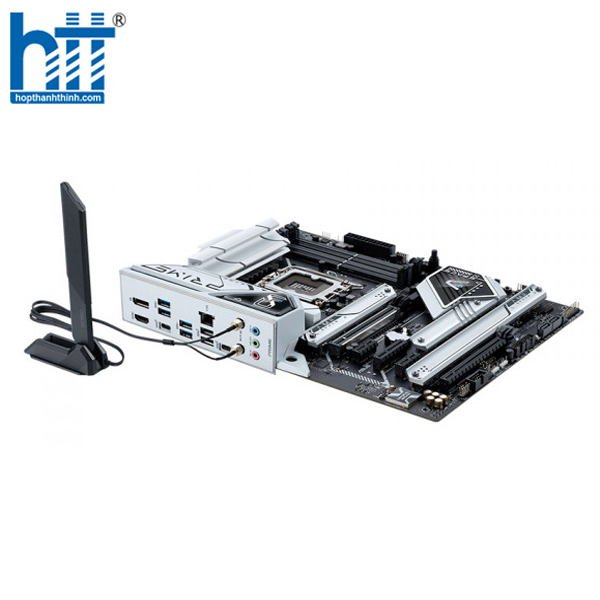

Cổng I/O Phía Sau

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

3 x Audio jacks

Onboard USB

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Cổng Kết Nối Khác

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C® )

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Power button

1 x SPI TPM header (14-1pin)

1 x  20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™  header

Kích Thước (W x L)

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Chân Cắm Nguồn

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connectors
