| Model | ROG Crosshair VIII Hero |
| Memory |
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory AMD RyzenTM 4000 G-Series Processors AMD RyzenTM 2000 Series Processors 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
|
Expansion Slots |
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors AMD RyzenTM 4000 G-Series / 2000 Series Processors AMD RyzenTM 3000 G-Series / 2000 G-Series Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2 x PCIe 3.0 x16 (x16 or dual x8) 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 1 x PCIe 4.0 x1 |
|
Storage |
AMD RyzenTM 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
Lan |
Intel® I211-AT Realtek® RTL8125-CG 2.5G LAN ASUS LAN Guard ROG GameFirst Technology |
|
Audio |
ROG SupremeFX8-Channel High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback Audio Feature : - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - Optical S/PDIF out port(s) at back panel - Sonic Radar III * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
USB Ports |
AMD Ryzen™5000 Series / 4000 G-Series/ 3000 Series Processors : AMD Ryzen™3000 G-Series / 2000 Series / 2000 G-Series Processors : 4 x USB 3.2 Gen 1 port(s) 1 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 2 port(s) 6 x USB 3.2 Gen 1 port(s) AMD X570 chipset : 4 x USB 2.0 port(s) |
|
ROG Exclusive Features |
Extreme Engine Digi+ : - IR3555 PoweIRstage® - MicroFine Alloy Chokes - 10K Black Metallic Capacitors ROG Extreme OC kit : - OptiMem III - Safe Boot button - Slow Mode - LN2 Mode Extreme Tweaker ROG Patented Pre-mounted I/O Shield ROG Exclusive Software - RAMCache III - RAMDisk - CPU-Z - GameFirst V |
|
Special Features |
- USB BIOS FlashBack™ ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : AURA : - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Exclusive Features : - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - ASUS NODE: hardware control interface - ASUS EZ Flash 3 - ASUS C.P.R.(CPU Parameter Recall) - Clear CMOS Button - Reset Button - Start Button - ReTry button ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector
|
|

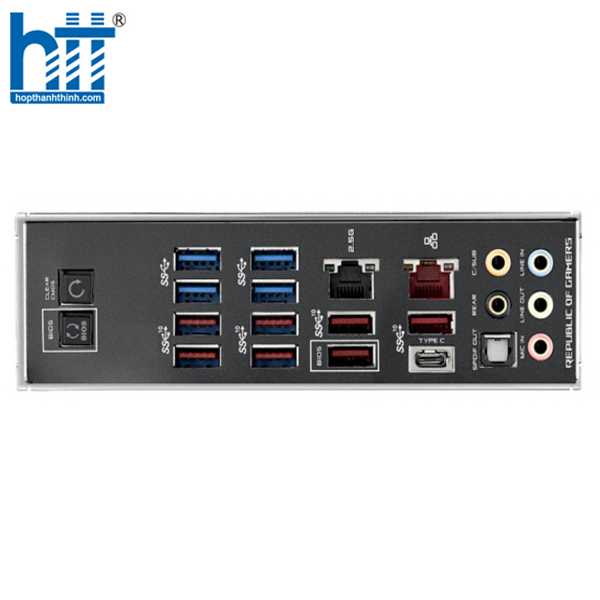

Back I/O Ports
|
1 x USB BIOS FlashBack™ Button(s) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x Anti-surge 2.5G LAN (RJ45) port 5 x Gold-plated audio jacks 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 8 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port
|
Internal I/O Ports
|
2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support 1 x TPM connector(s) 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x 4-pin EATX 12V Power connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 1 x Speaker connector 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
|
Accessories
|
User´s manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s) 1 x ROG Thank you card
|
BIOS |
56 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 |
Manageability
|
WOL, PXE |
Operating System
|
|
Form Factor
|
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm
|
Bảo hành: 36 tháng
Chipset: AMD X570
Socket: AMD AM4
Kích thước: ATX
Bảo hành: 36 tháng
Số khe RAM: 4 khe (Tối đa 128GB)
SKU: X570
GIAM5

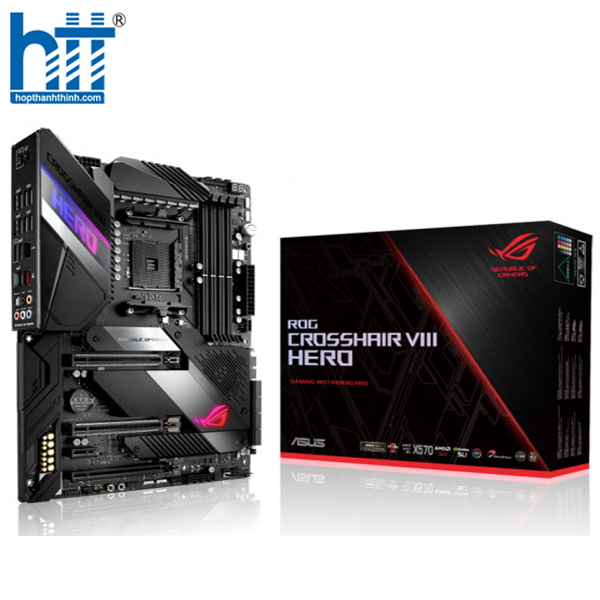

Mainboard ASUS ROG X570 CROSSHAIR VIII HERO là bo mạch chủ socket AM4 cao cấp nhất của Asus, hỗ trợ các CPU Ryzen 5000 (5000 Series sau khi update Bios) mới nhất và hàng loạt công nghệ đi kèm. Đây là phiên bản nâng cấp nhẹ của CROSSHAIR VIII Hero ở khu vực phase cấp nguồn cho CPU nên sẽ có khả năng Over Clock tốt hơn.

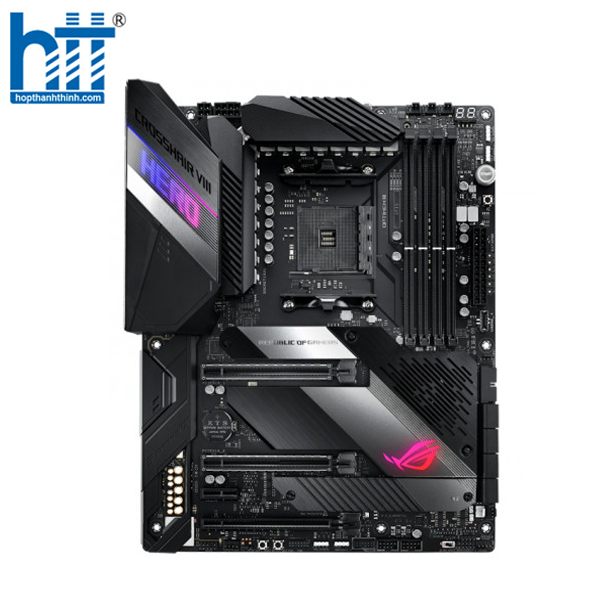

ASUS ROG X570 CROSSHAIR VIII HERO có PCB màu đen mờ với hoa văn tinh tế của các đường in. Nắp I / O phía sau cũng có màu đen mờ, với "Crosshair VIII" màu xám tinh tế trên đầu. Các tản nhiệt cho các ổ VRM, chipset và M.2 có màu đen sâu với lớp hoàn thiện dạng hạt.
Mainboard ASUS ROG X570 CROSSHAIR VIII HERO sử dụng những linh kiện được chọn lọc có chất lượng tốt nhất trong ngành để tạo nên một bo mạch chủ dẫn đầu về hiệu năng,
Toàn bộ phần heatsink trên Mainboard ASUS ROG X570 CROSSHAIR VIII HERO không chỉ có tác dụng làm đẹp, đây còn là bộ phận giúp làm mát cho các thành phần điện tử trên bo mạch chủ.
