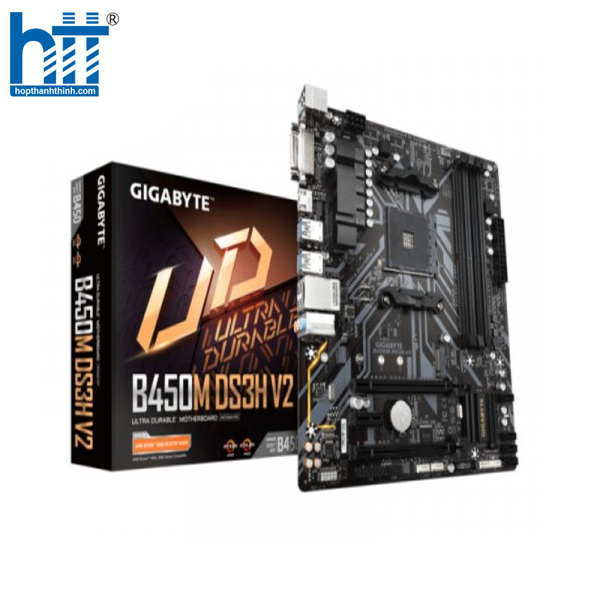

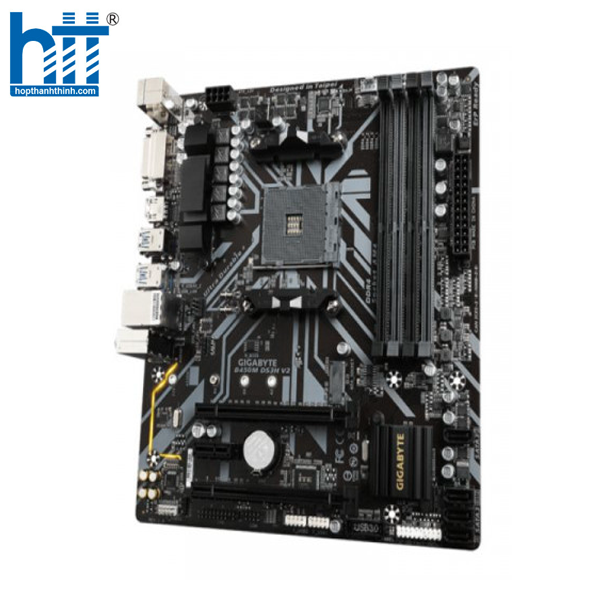

Nhà sản xuất

Gigabyte

Model

B450M-DS3H-V2

CPU hỗ trợ

AMD socket AM4

Chipset

AMD B450

Hỗ trợ Ram

4 x DDR4 Up to 3600(O.C.) MHz (Max 128GB)

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)^(Note)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot

Hỗ trợ ổ cứng

1 x slot M.2 2242/2260/2280/22110 PCIe Gen 3.0 x4

4 x slot SATA 6Gbps

Support RAID 0, 1, 10

LAN

1 x Realtek® GbE LAN

Audio

Realtek® Audio CODEC

Cổng kết nối bên trong

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
14. 1 x serial port header
15. 1 x Clear CMOS jumper

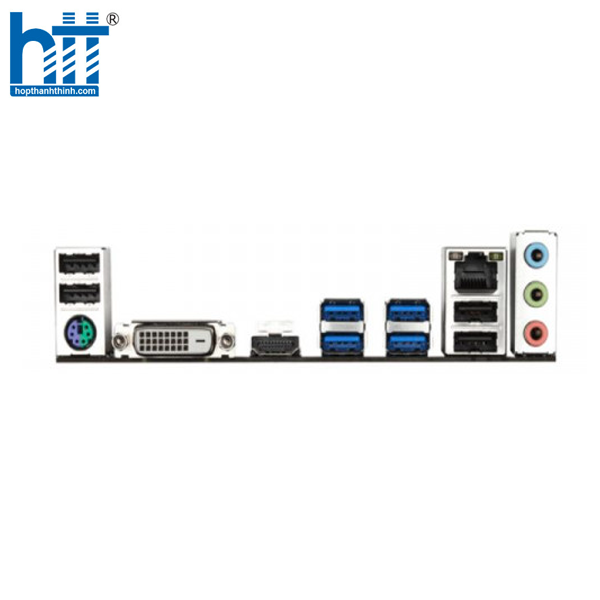

Cổng kết nối phía sau

1. 1 x PS/2 keyboard/mouse port
2. 1 x DVI-D port
3. 1 x HDMI port
4. 4 x USB 3.1 Gen 1 ports
5. 4 x USB 2.0/1.1 ports
6. 1 x RJ-45 port
7. 3 x audio jacks

Kiểu dáng

mATX (244 x 215 mm)
