Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

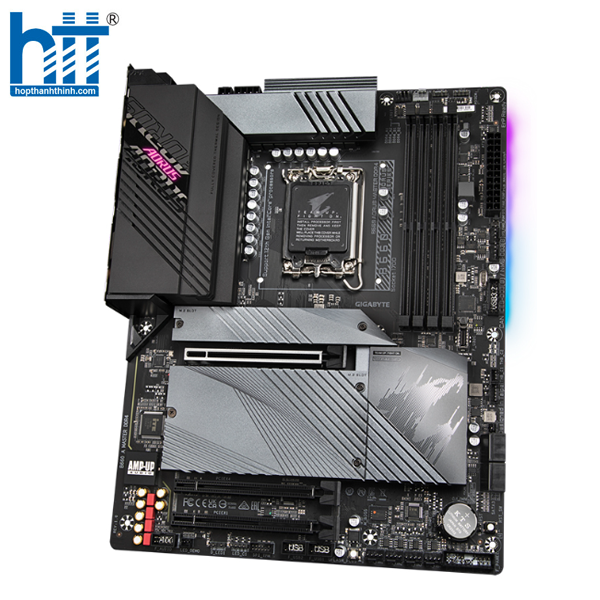

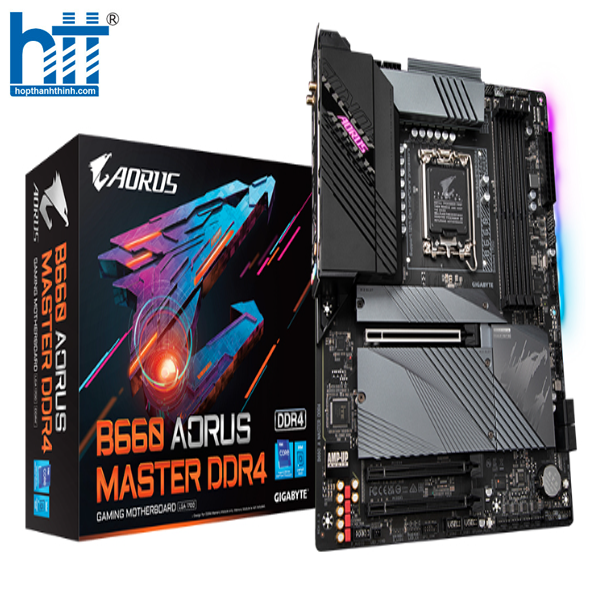

B660 Aorus Master DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

Support for DDR4 3200/3000/2933/2666/2400/2133 MHz
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1)

Ổ cứng hỗ trợ

CPU:

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper
