Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Mode

B660I AORUS PRO DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

1. Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

1. 4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x water cooling CPU fan header
5. 1 x system fan header
6. 1 x addressable LED strip header
7. 1 x RGB LED strip header
8. 1 x M.2 Socket 3 connector
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x speaker header
13. 1 x USB Type-C^® header, with USB 3.2 Gen 1 support
14. 1 x USB 3.2 Gen 1 header
15. 1 x USB 2.0/1.1 header
16. 1 x reset jumper
17. 1 x Clear CMOS jumper
18. 1 x chassis intrusion header

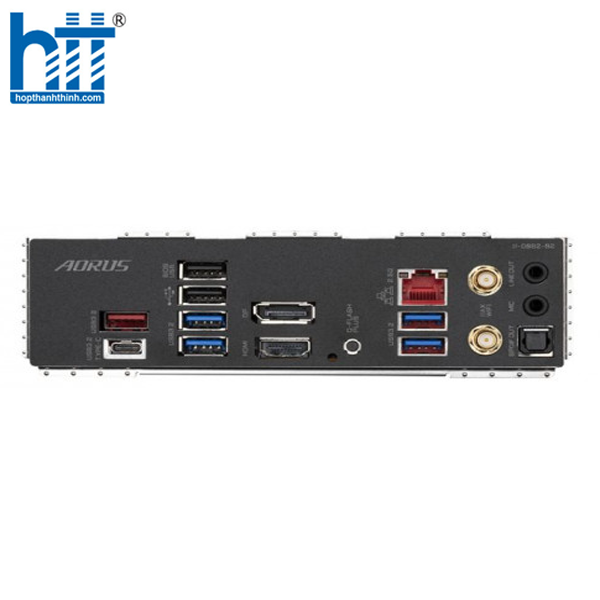

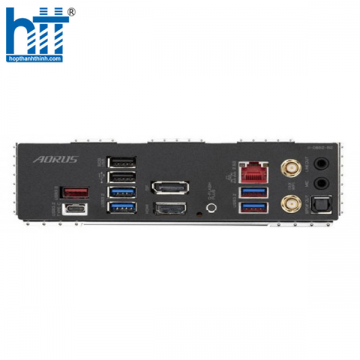

Cổng kết nối (Back Panel)

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 4 x USB 3.2 Gen 1 ports
4. 2 x USB 2.0/1.1 ports
5. 1 x DisplayPort
6. 1 x HDMI 2.0 port
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 2 x SMA antenna connectors (2T2R)
10. 1 x optical S/PDIF Out connector
11. 2 x audio jacks

LAN / Wireless

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Kích cỡ

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
