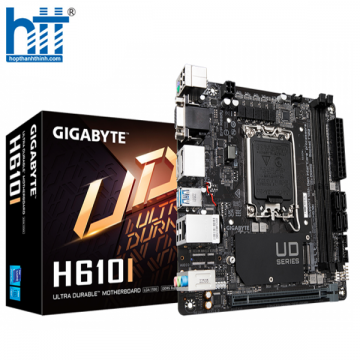

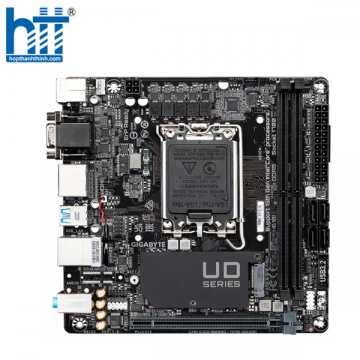

Loại sản phẩm

Mainboard

Thương hiệu

GIGABYTE

Model

H610I

Chipset

Intel® H610 Express Chipset

Hỗ trợ socket

Intel LGA 1700

Memory

- Support for DDR5 5600/5200/4800/4400 MT/s memory modules

13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:

- Support for DDR5 4800/4400 MT/s memory module

2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Storage

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)

- 4 x SATA 6Gb/s connectors

Ethernet

Intel® GbE LAN chip (1 Gbps/100 Mbps)

USB

Chipset:

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 2 x USB 2.0/1.1 ports available through the internal USB header

Expansion Slots

1 x PCI Express x16 slot, running at x16

(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

Audio

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

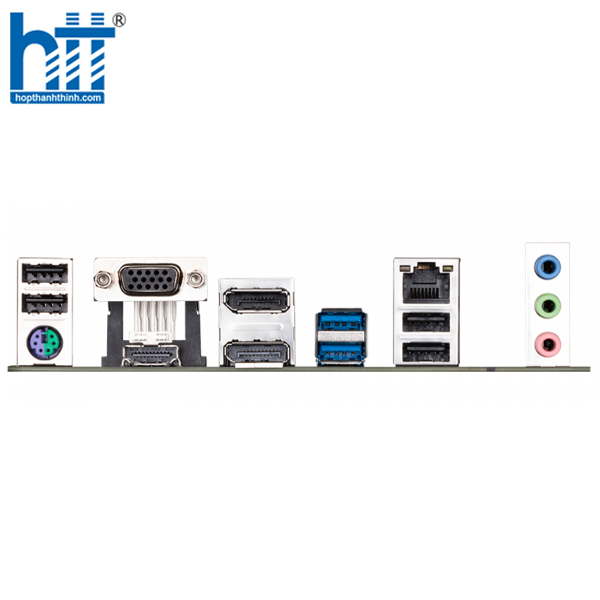

Back Panel I/O Ports

1 x PS/2 keyboard/mouse port

2 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x D-Sub port

2 x DisplayPorts

1 x HDMI port

1 x RJ-45 port

3 x audio jacks

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x speaker header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header

1 x Clear CMOS jumper

1 x chassis intrusion header

Operating System

Microsoft® Windows® 10 64-bit / 11 64-bit

Kích thước

Mini-ITX Form Factor; 17.0cm x 17.0cm
