Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

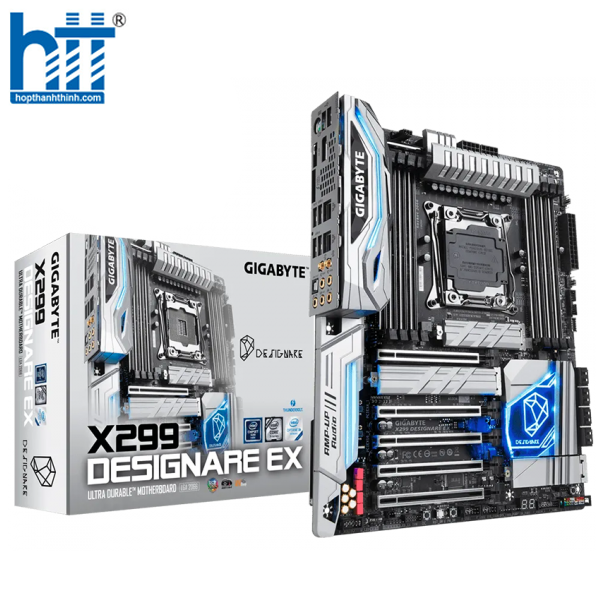

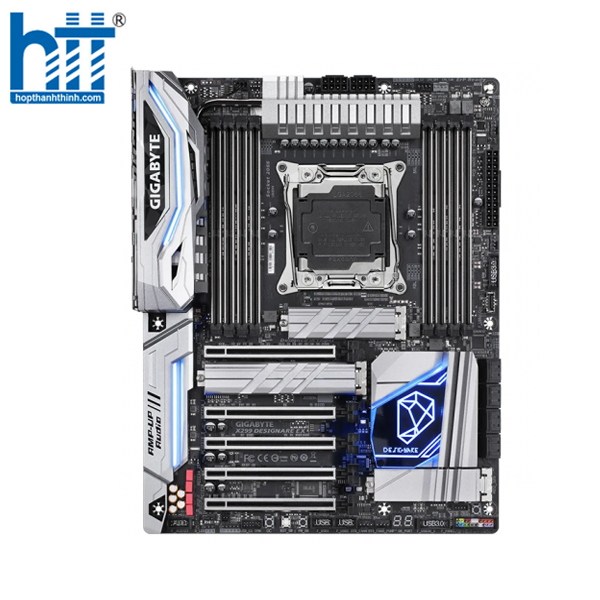

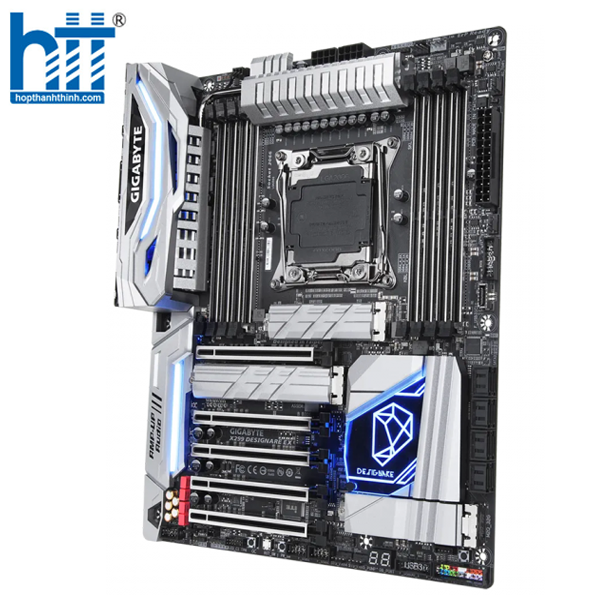

X299 DESIGNARE EX

Bảo hành

36 tháng

CPU

Support for Intel® Core™ X series processors in the LGA2066 package

L3 cache varies with CPU

Chipset

Intel® X299

Bộ nhớ

8 x DDR4 DIMM sockets supporting up to 256 GB of system memory.

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.

* Supported when using a 16-lane CPU (4-core).

4 channel memory architecture.

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

Dual channel memory architecture.

Supported when using a 16-lane CPU (4-core).

Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for non-ECC Un-buffered DIMM memory modules

Support for Extreme Memory Profile (XMP) memory modules

Card đồ họa tích hợp

Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:

2 x Intel® Thunderbolt™ 3 connectors, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz

* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)

* Support for DisplayPort 1.2 version.

Âm thanh

Realtek® ALC1220 codec

Support for Sound BlasterX 720°

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

2 x Intel® GbE LAN chips (10/100/1000 Mbit)

Wireless Communication module

Intel® Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Support for 11ac wireless standard and up to 867 Mbps data rate

Khe cắm mở rộng

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

1 x PCI Express x16 slot, running at x8 (PCIEX8)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Công nghệ đa card đồ họa

Support for NVIDIA® Quad-GPU SLI™ and 3-Way* /2-Way NVIDIA® SLI™ technologies

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

Support for AMD Quad-GPU CrossFire™ and 3-Way* /2-Way AMD CrossFire™ technologies

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

Giao diện lưu trữ

Chipset:

1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G)

6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* The M2M_32G connector must work with an Intel® VROC Upgrade Key to support RAID configuration.

* Refer to "1-10 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

USB

Chipset+Intel® Thunderbolt™ 3 Controller:

2 x USB Type-C™ ports on the back panel, with USB 3.1 Gen 2 support

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

1 x USB Type-C™ port with USB 3.1 Gen 2 support, available through the internal USB header

Chipset+Realtek® USB 3.1 Gen 1 Hub:

4 x USB 3.1 Gen 1 ports on the back panel

Chipset:

4 x USB 3.1 Gen 1 ports available through the internal USB headers

6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Kết nối I/O bên trong

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

1 x digital LED strip header

1 x digital LED strip power select jumper

2 x RGB (RGBW) LED strip headers

3 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x Intel® VROC Upgrade Key header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x power button

1 x reset button

1 x Clear CMOS button

1 x OC button

2 x temperature sensor headers

Kết nối bảng phía sau

1 x PS/2 keyboard/mouse port

2 x USB 2.0/1.1 ports

2 x DisplayPort In ports

2 x Thunderbolt™ 3 connectors (USB Type-C™ ports, with USB 3.1 Gen 2 support)

4 x USB 3.1 Gen 1 ports

2 x RJ-45 ports

2 x MMCX antenna connectors (2T2R)

1 x optical S/PDIF Out connector

5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

Điều khiển I/O

iTE® I/O Controller Chip

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

Support for Q-Flash Plus

* The USB flash drive used must be a USB 2.0 flash drive.

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Hệ điều hành

Support for Windows 10 64-bit

Hệ số khuôn

ATX Form Factor; 30.5cm x 24.4cm
