Loại sản phẩm

Mainboard

Thương hiệu

Gigabyte

Model

X299-WU8

Bảo hành

36 tháng

CPU

Support for Intel® Core™ X series processors (6-core or above) in the LGA2066 package

L3 cache varies with CPU

Chipset

Intel® X299

Bộ nhớ

Intel® Core™ X series 48-lane processors:

- 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory

Intel® Core™ X series 44-lane/28-lane processors:

- 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory

4 channel memory architecture

Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules

Support for non-ECC Un-buffered DIMM

Support for Extreme Memory Profile (XMP) memory modules

Âm thanh

Realtek® ALC1220-VB codec

* The back panel line out jack supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

2 x Intel® GbE LAN chips (10/100/1000 Mbit)

Khe cắm mở rộng

4 x PCI Express x16 slots, running at x16 (PCIEX16_1/2/3/4)

3 x PCI Express x16 slots, running at x8 (PCIEX8_1/2/3)

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

* Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.

Công nghệ đa card đồ họa

Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies

Support for AMD Quad-GPU CrossFire™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies

Giao diện lưu trữ

Chipset:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

8 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

* The M.2 connector supports SATA RAID only.

* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Intel® Optane™ Memory Ready

USB

Chipset+ASMedia® USB 3.1 Gen 2 Controller:

1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red) on the back panel

Chipset:

10 x USB 3.1 Gen 1 ports (6 ports on the back panel, 4 ports available through the internal USB headers)

2 x USB 2.0/1.1 ports on the back panel

Kết nối I/O bên trong

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x VGA_PW power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

1 x system fan/water cooling pump header

1 x 3 Amp fan/water cooling pump header

1 x digital LED strip header

1 x digital LED strip power select jumper

2 x RGB (RGBW) LED strip headers

1 x M.2 Socket 3 connector

8 x SATA 6Gb/s connectors

1 x Intel® VROC Upgrade Key header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

2 x USB 3.1 Gen 1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Thunderbolt™ add-in card connector

1 x power button

1 x reset button

1 x Clear CMOS button

2 x temperature sensor headers

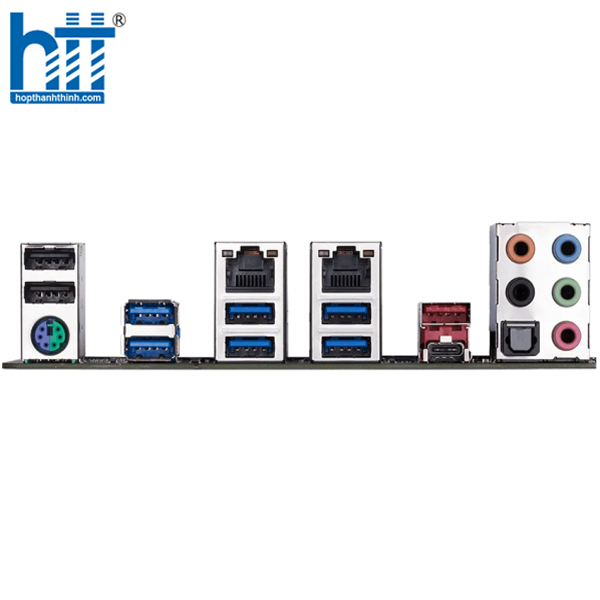

Kết nối bảng phía sau

2 x USB 2.0/1.1 ports

6 x USB 3.1 Gen 1 ports

1 x USB Type-C™ port, with USB 3.1 Gen 2 support

1 x USB 3.1 Gen 2 Type-A port (red)

2 x RJ-45 ports

1 x optical S/PDIF Out connector

5 x audio jacks

Điều khiển I/O

iTE® I/O Controller Chip

BIOS

2 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating Properties

Operating temperature: -10°C to 50°C

Operating humidity: 8 - 90%

Non-operating temperature: -40°C to 70°C

Non-operating humidity: 5% - 95%

Hệ điều hành

Support for Windows 10 64-bit

Hệ số khuôn

CEB Form Factor; 30.5cm x 26.7cm
