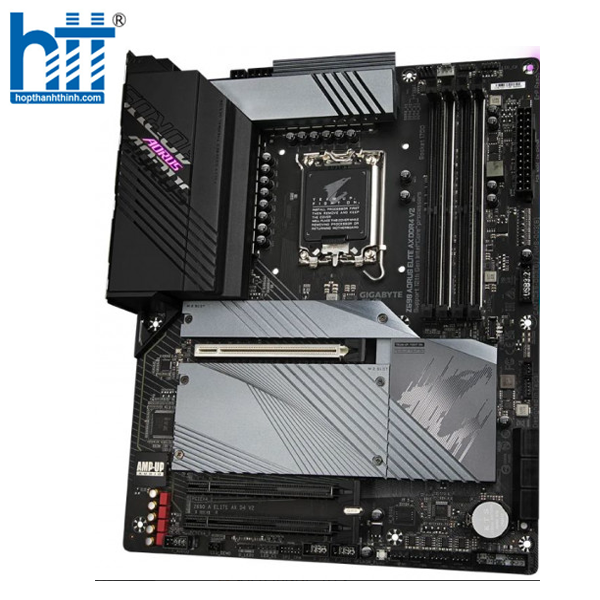

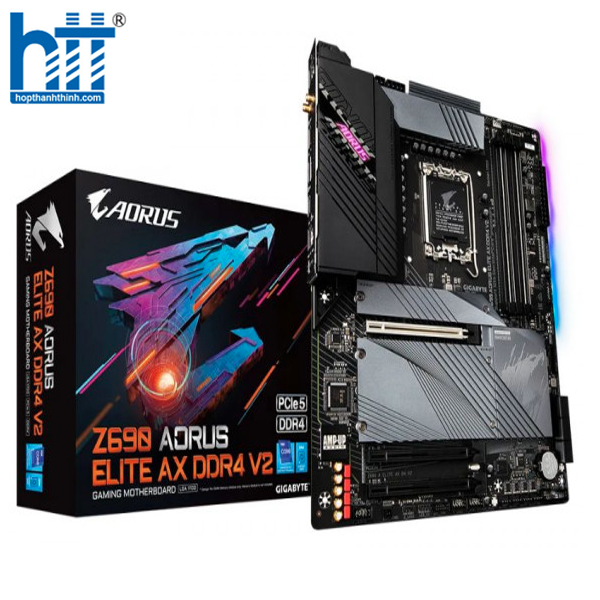

Thương Hiệu

GIGABYTE

Model

Z690 AORUS Elite AX DDR4 V2

Kích Cỡ

ATX

CPU Socket

LGA1700

Chipset

Intel® Z690 Express Chipset

Số Khe Ram

4

Bus Ram Hỗ Trợ

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Dung Lượng Ram Tối Đa Hỗ Trợ

128GB

Số Cổng SATA

6

M.2

4

Chip Xử Lý Âm Thanh

Realtek® ALC1220-VB CODEC

Số Kênh Âm Thanh

2-channel analog output

7.1-channel digital signals

LAN Chipset

Realtek® 2.5GbE LAN chip

Tốc Độ LAN

2.5 Gbps/1 Gbps/100 Mbps

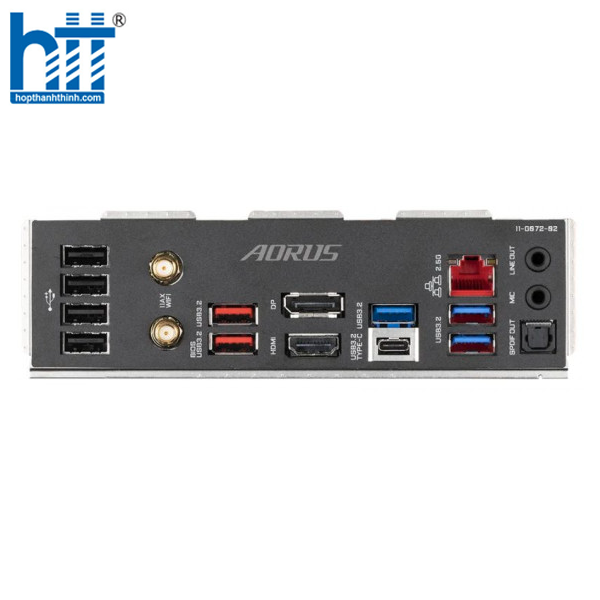

Cổng I/O Phía Sau

4 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

3 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

2 x audio jacks

1 x HDMI port

1 x DisplayPort

Onboard USB

1 x USB Type-C® header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

Cổng Kết Nối Khác

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

4 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Kích Thước (W x L)

30.5cm x 24.4cm

Chân Cắm Nguồn

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector
